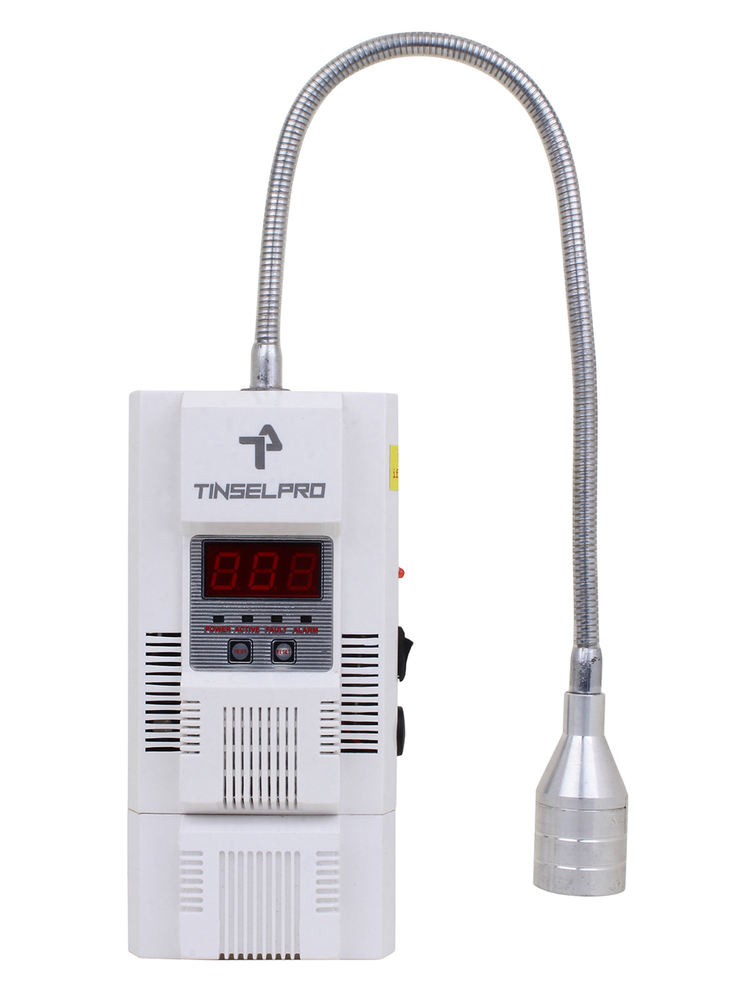

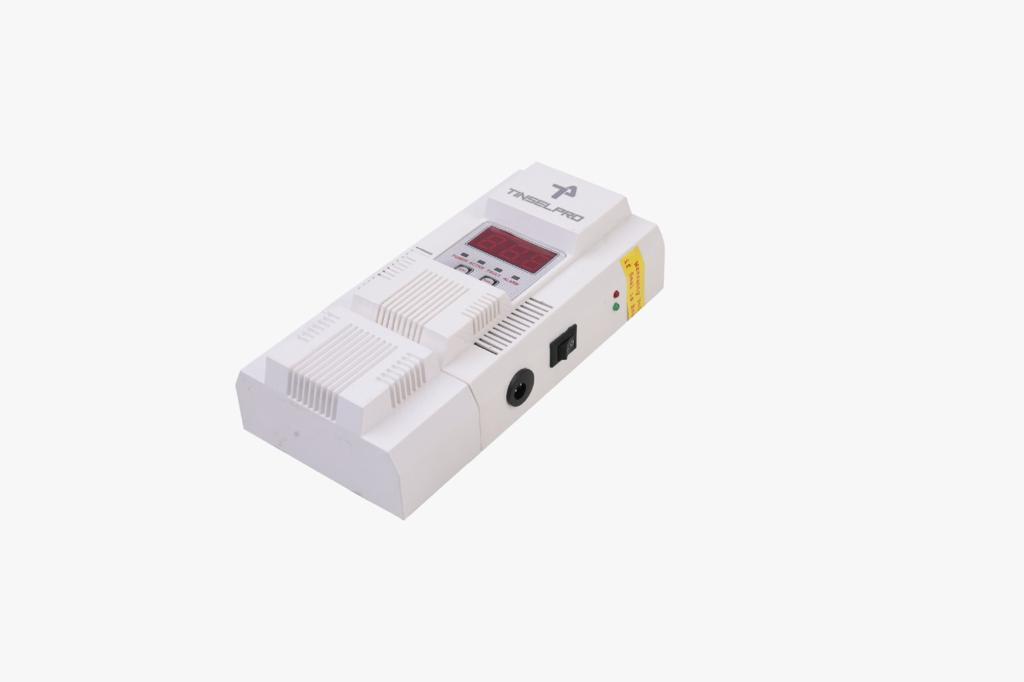

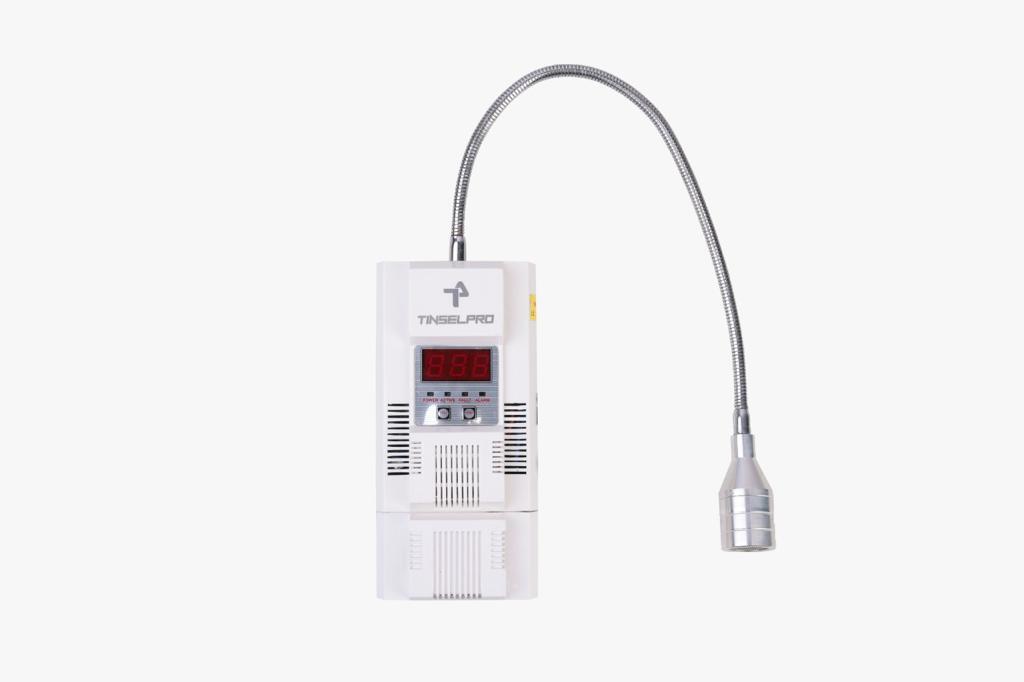

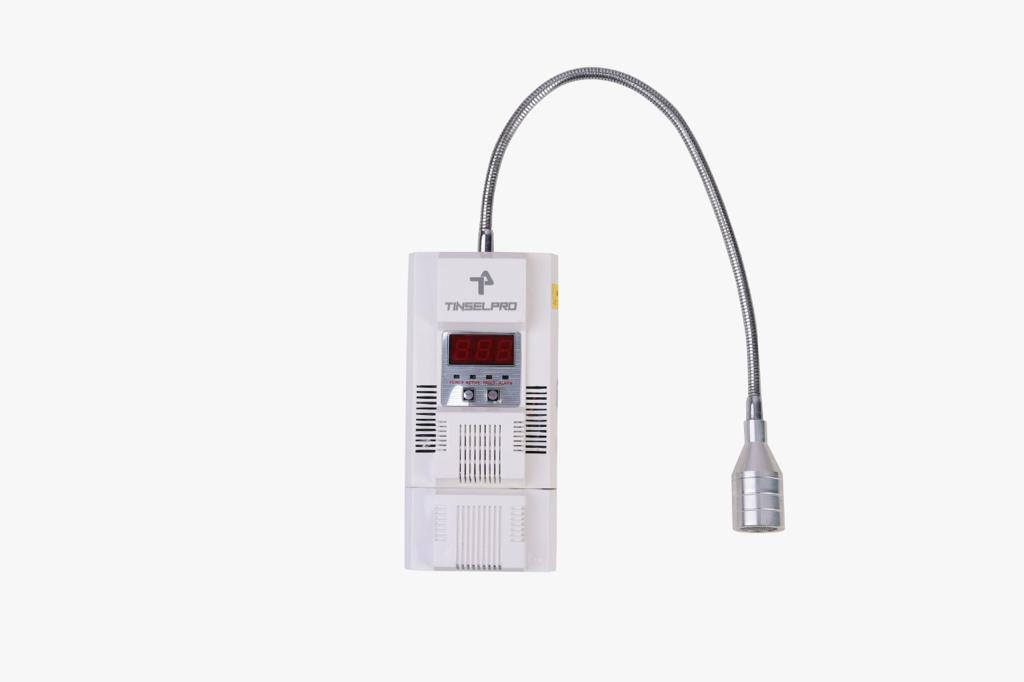

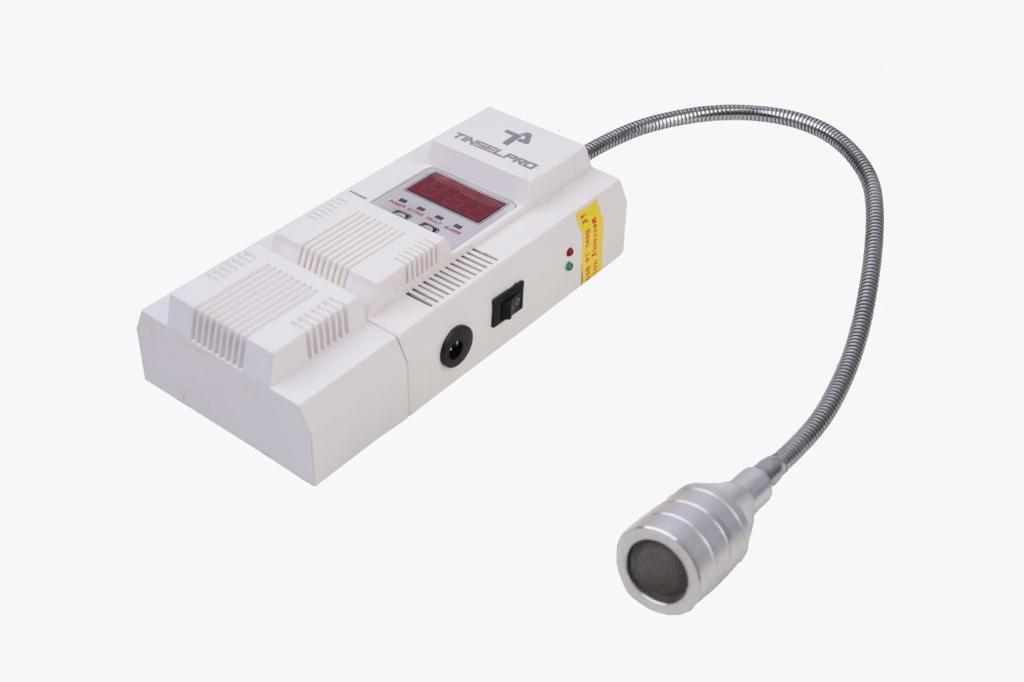

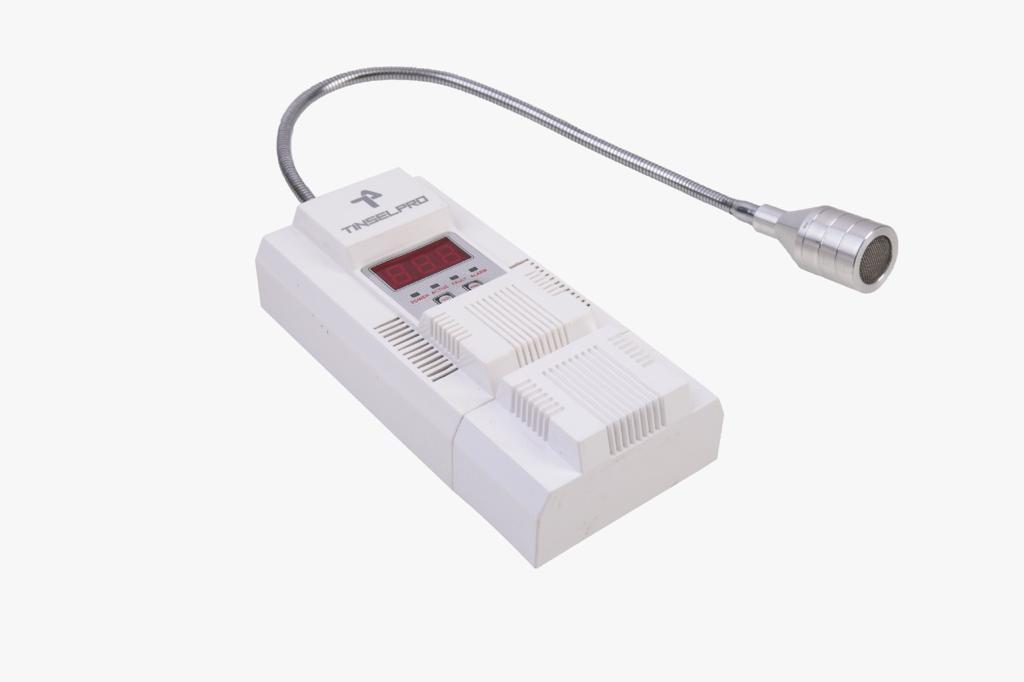

Handheld Portable Methane Gas Detector

Name: Handheld Portable Methane Gas Detector
Brand: R. J. ELECTRICALS PVT. LTD.
Price: 19000.0 INR
Availability: InStock

Price 19000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Handheld Portable Methane Gas Detector Specification

Temperature
0 To 55 Celsius (oC)

Display
7 SEGMENT DISPLAY

Color
WHITE

Weight
310 Grams (g)

Operating Temperature
0 TO 55 Celsius (oC)

Humidity
<95%

Dimension (L*W*H)
150 X 75 X 40 Millimeter (mm)

Sensor
MOS SEMICONDUCTOR SENSOR TECHNOLOGY

Accuracy
100 %

Test Range
0 TO 999 PPM

Application
LPG storage yards and bottling plants, PNG/CND/LNG System/ Skid Area/ CNG Gas Station, Chemical and Pharmaceutical processing

Test Material
Gas

Product Type
GAS LEAK DETECTOR

Power Supply
9V 600Mah Battery

Response Time
30 Seconds

Type
Electronic

Use
GAS LEAK DETECTOR

Test Medium
GAS

Operating Voltage
9V 600Mah Battery Volt (V)

Net Weight
310 Grams (g)

Handheld Portable Methane Gas Detector Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

Handheld Portable Methane Gas Detector About

We are a reputed firm, instrumental in manufacturing, exporting and supplying supreme quality Portable Methane Gas Detector (Hand-Held). This detector is manufactured using quality approved components by our experienced professionals with the aid of cutting edge techniques. The offered detector is used for checking the leakage of methane in commercial and industrial places. In addition, the provided Portable Methane Gas Detector (Hand-Held) can be bought from us at rock bottom prices.

Key Points:

Easy to hold
Light weight
User friendly
High durability

TECHNICAL SPECIFICATION:

Detecting Principle	Semiconductor
Detected Gas	CH4
Measurement Range	0 to 999 PPM
Resolution	0.1%
Operating Temperature	0 to 55^oC
Operating Humidity	<95%
Display Mode	Digital display with seven segment screen
Alarming Method	Automatic Alarming
Sound Level	>80 Db
Power Supply	Battery Operated(9Volts,600mAh)
Weight	450 gms
Current	<180 mA (In measuring condition) <100 mA (In non measuring condition)

LED Indicator Indication:

GREEN LED : POWER light (shows Detector power ON)

BLUE LED : ACTIVE light (shows Detector working properly)

YELLOW LED: FAULT light (shows sensor is faulty)

RED LED : alarm light (GAS concentration is above the preset level)

BUTTON OPERATION:

TEST BUTTON: Press for test alarm FUNCTION.

RESET BUTTON: Press for stop the WARM UP time.

Advanced Sensor Technology

Featuring MOS semiconductor sensor technology, this gas detector ensures highly accurate and rapid methane detection. The built-in sensor provides immediate results, making it suitable for diverse industrial environments that require reliable gas leak monitoring.

Portable and Convenient Design

Weighing only 310 grams and measuring 150 x 75 x 40 mm, this handheld device is easy to carry and operate in different locations. Its compact form factor is complemented by a bright 7-segment display, allowing for quick reading and decision-making on the go.

Wide Application Range

Ideal for LPG storage yards, CNG/LNG system skid areas, and chemical or pharmaceutical plants, this detector plays a vital role in occupational safety. Its broad compatibility with various industrial settings makes it an indispensable tool for gas leak prevention and control.

FAQ's of Handheld Portable Methane Gas Detector:

Q: How does the handheld portable methane gas detector operate?

A: The detector operates using MOS semiconductor sensor technology, which detects the presence of methane gas within a range of 0 to 999 PPM. It provides accurate readings on its 7-segment display within 30 seconds, powered by a 9V 600mAh battery.

Q: What are the primary benefits of using this gas leak detector?

A: The main benefits include fast response time, high detection accuracy, portability, and easy monitoring with its large display. It enhances safety by providing early warnings about methane leaks in industrial environments.

Q: When should this methane gas detector be used?

A: It should be used routinely in locations where methane gas is present or likely to accumulate, including LPG storage facilities, CNG/Pipeline gas stations, and chemical or pharmaceutical processing areas, to ensure ongoing safety and risk management.

Q: Where can this gas detector be effectively applied?

A: This device is suitable for use in LPG storage yards, CNG/PNG/LNG systems, bottling plants, chemical and pharmaceutical processing facilities, and any industrial area where gas leakage is a concern.

Q: What is the correct process for using the detector?

A: To use, power on the device with the 9V 600mAh battery, allow a brief warm-up, and hold the detector near suspected gas leak sources. Monitor the 7-segment display for gas concentration readings, and act promptly if high levels are detected.

Q: What is the optimal operating environment for this gas detector?

A: The detector functions best within temperatures of 0 to 55C and humidity below 95%, ensuring reliable operation and longevity in demanding working environments.
