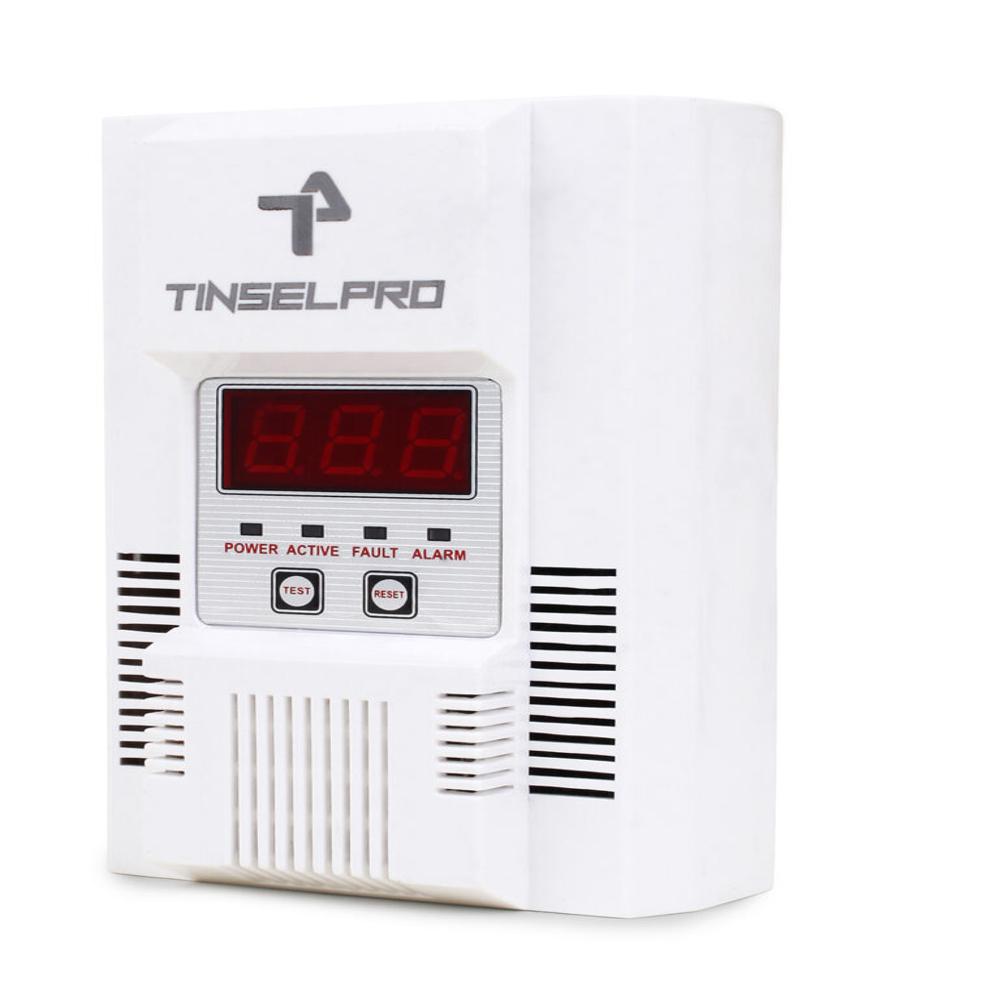

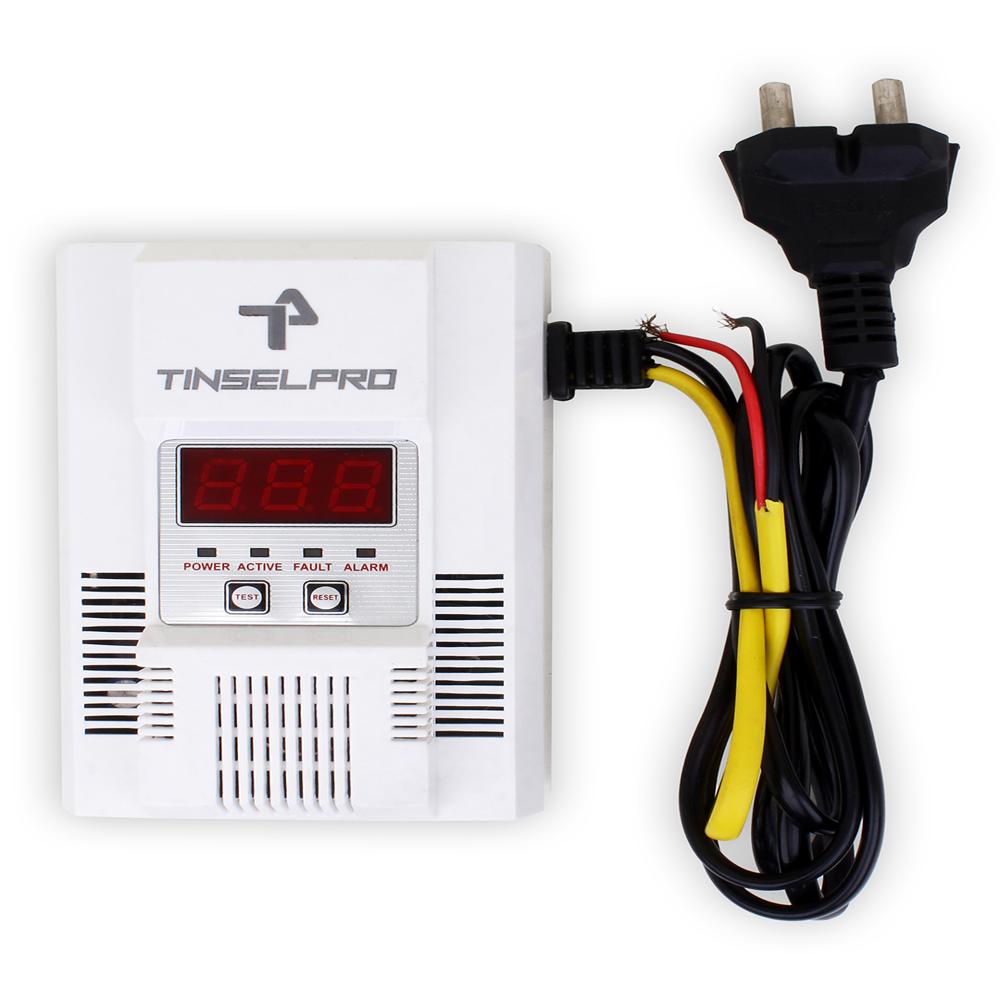

Wall Hung CNG Gas Leak Detector

Name: Wall Hung CNG Gas Leak Detector
Brand: R. J. ELECTRICALS PVT. LTD.
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wall Hung CNG Gas Leak Detector Specification

Response Time
30 Seconds

Test Material
Gas

Display
SEVEN SEGMENT

Dimension (L*W*H)
115 X 75 X 30 Millimeter (mm)

Application
Restaurents and Commercial Kitchens, Hotels and Hospitality, Hospitals and Healthcare Facilities, Educational Institutions, Commercial Buildings

Power Supply
24V DC/220V AC/ 12V DC

Humidity
<95%

Sensor
GAS SENSOR

Color
WHITE

Voltage
220 Volt (v)

Weight
325 Grams (g)

Power
24 Volt (v)

Accuracy
100 %

Temperature
0 To 55 Celsius (oC)

Operating Temperature
0 TO 55 Celsius (oC)

Test Range
0 TO 999 PPM

Product Type
GAS LEAK DETECTOR

Type
Electronic

Use
GAS LEAK DETECTOR

Test Medium
GAS

Operating Voltage
24V DC/220V AC/ 12V DC Volt (V)

Net Weight
325 Grams (g)

Operating Mode
SEMICONDUCTOR

Wall Hung CNG Gas Leak Detector Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
CE, ROHS

About Wall Hung CNG Gas Leak Detector

Compressed natural gas ( CNG) is natural gas under pressure which remains clear, odorless, and non-corrosive. Although vehicles can use natural gas as either a liquid or a gas. CNG is stored under high pressure; however, the range of flammability and combustion is much more narrow with CNG making it safe, CNG will not burn at concentrations below 5% or above about 15% when mixed with air.

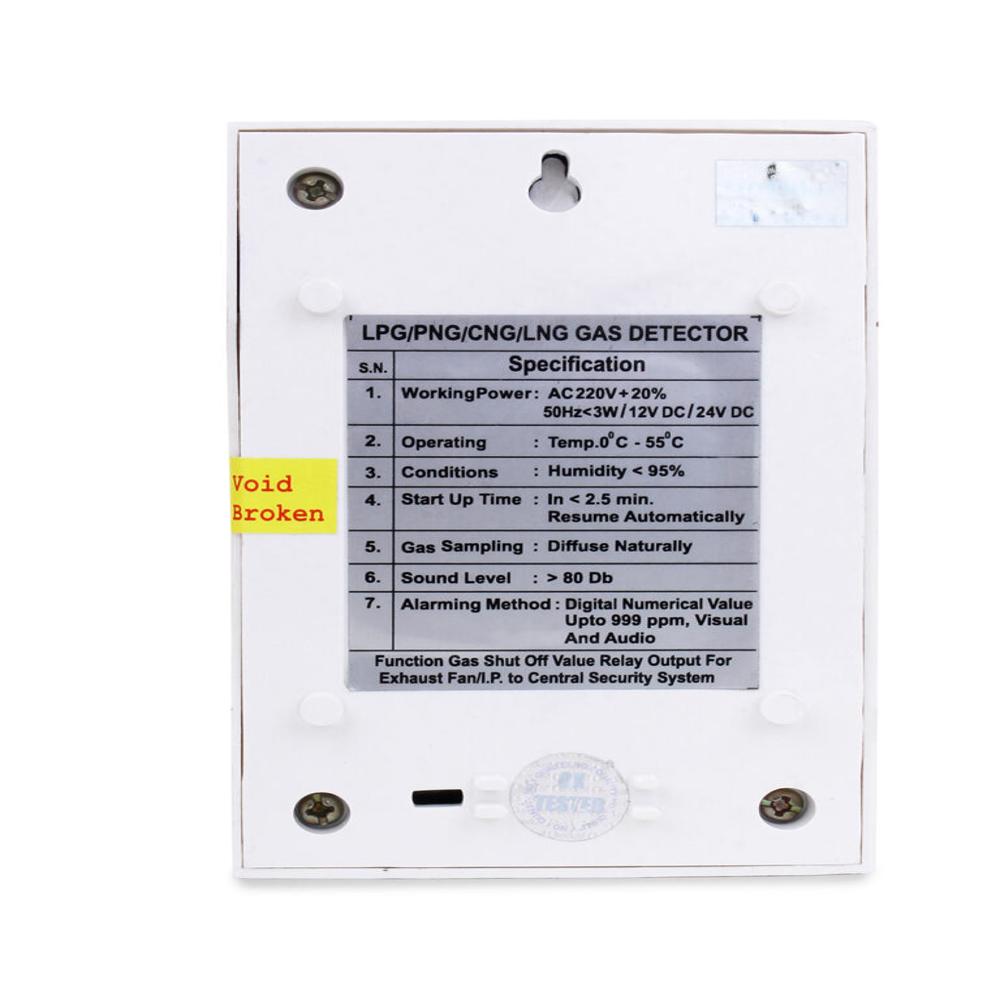

Technical Specifications

Current	Less Than 150 mA (In measuring condition) Less Than75 mA (In non measuring condition)
Measurement Range	0 to 999 PPM
Brand	TINSELPRO
Alarming Method	Automatic Alarming
Optional Function	Gas shut off valve,Relay output for exhaust fan,Input to Central Security System
Detecting Principle	Semiconductor
Weight	350 gms
Sound Level	Grater Than 80 Db
Resolution	0.1%
Power Supply	230 Volts AC/ 12 Volts DC/ 24 Volts DC
Operating Temperature	0 to 55 Degree C
Operating Humidity	Less Than 95%
Display Mode	Digital display with seven segment screen
Detected Gas	CNG

Advanced Gas Detection Technology

Utilizing a high-sensitivity semiconductor gas sensor, this CNG gas leak detector accurately measures gas concentrations from 0 to 999 PPM. Its electronic build ensures rapid response and reliable performance, providing early warnings to prevent hazardous situations. The seven-segment display allows users to monitor gas levels at a glance.

Versatile Power Options and Easy Installation

Designed for seamless integration, the detector operates on multiple voltages: 24V DC, 220V AC, or 12V DC. This flexibility facilitates installation in various settings, whether residential, commercial, or industrial. Despite its powerful capabilities, the device weighs only 1 kilogram, making wall-mounting straightforward.

Safety Assurance in Humid Environments

With an operational humidity tolerance of up to 95%, this detector functions reliably even in challenging environments. Its robust design and precision ensure continuous monitoring and peace of mind, making it an excellent choice for exporters, manufacturers, and suppliers across India.

FAQ's of Wall Hung CNG Gas Leak Detector:

Q: How does the Wall Hung CNG Gas Leak Detector operate?

A: This detector uses a semiconductor-based electronic sensor to continuously monitor the presence of compressed natural gas (CNG) in the air. If gas levels rise within its 0-999 PPM detection range, the seven-segment display alerts users, and built-in safety mechanisms can trigger alarms as required.

Q: What are the power supply requirements for the gas leak detector?

A: The detector supports three different power inputs: 24V DC, 220V AC, and 12V DC. This enables flexible installation options for a variety of environments, supporting both direct current and alternating current setups.

Q: When should I use the Wall Hung CNG Gas Leak Detector?

A: It is best used in areas where compressed natural gas leaks could pose safety risks, such as kitchens, basements, gas storage areas, and industrial sites. Early installation ensures prompt detection and reduces the risk of hazardous incidents.

Q: Where can this CNG gas leak detector be installed?

A: Designed for wall mounting, it can be installed at gas-prone points, such as near gas pipelines, storage tanks, or areas with appliances using CNG. Its compact and lightweight structure makes it suitable for most wall surfaces.

Q: What is the process for monitoring gas leaks with this device?

A: Once installed and powered, the detector constantly samples air. It displays the gas concentration on its seven-segment display. If levels approach unsafe limits, it responds within 10 seconds by issuing a visible alert, prompting timely action.

Q: How accurate and responsive is the detector?

A: The device delivers a 100% accuracy rate in detecting CNG leaks and has a response time of just 10 seconds, ensuring that any rise in gas concentration is detected and reported almost immediately.

Q: What are the main benefits of using this CNG gas leak detector?

A: This detector ensures user safety by promptly detecting leaks, even in humid conditions up to 95%. It is easy to install, operates on multiple voltages, and provides instant results via its display, making it ideal for a wide range of environments.
