Wall Hung CO Gas Leak Detector

Name: Wall Hung CO Gas Leak Detector
Brand: R. J. ELECTRICALS PVT. LTD.
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wall Hung CO Gas Leak Detector Specification

Weight
325 Grams (g)

Power Supply
24V DC/220V AC/ 12V DC

Application
Restaurents and Commercial Kitchens , Hotels and Hospitalities Facilities , Educational Institutions, Commercial Buildings

Color
WHITE

Test Material
Gas

Voltage
220 Volt (v)

Power
24 Volt (v)

Product Type
GAS LEAK DETECTOR

Sensor
MOS SEMICONDUCTOR SENSOR

Operating Temperature
0 TO 55 Celsius (oC)

Dimension (L*W*H)
115 x 75 x 30 Millimeter (mm)

Response Time
30 Seconds

Display
SEVEN SEGMENT

Test Range
0 TO 999 PPM

Humidity
<95%

Temperature
0 To 55 Celsius (oC)

Accuracy
100 %

Type
Electronic

Use
GAS LEAK DETECTOR

Test Medium
PPM

Operating Voltage
24V DC/220V AC/ 12V DC Volt (V)

Net Weight
325 Grams (g)

Operating Mode
SEMICONDUCTOR

Wall Hung CO Gas Leak Detector Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

Main Domestic Market
All India

Certifications
CE, ROHS

Wall Hung CO Gas Leak Detector About

We are engaged in manufacturing, exporting and supplying premium grade CO Gas Leak Detector (Wall-Hung). Used for testing leakage of co gas, the offered detector is highly cherished among clients owing to its accurate result. The provided detector is manufactured using quality examined components by our diligent professionals with the aid of advanced technique. Additionally, this CO Gas Leak Detector (Wall-Hung) can be purchased from us at economical rates.

Key Points:

Compact size
Easy to hang
Longer service life
Light weight

Carbon Monoxide Concentrations: Table

Concentration of CO in Air

Concentration of CO in the air (ppm)	Inhalation Time	Toxic Symptoms
9	Short term exposure	recommended maximum allowable concentration in living area.
35	8 hours	The maximum exposure allowed by OSHA in the workplace over an eight hour period.
200	2-3 hours	Slight headache, tiredness, fatigue, nausea and dizziness.
400	1-2 hours	Serious headache-other symptoms intensify. Life threatening after 3 hours.
800	45 minutes	Dizziness, nausea and convulsions. Unconscious within 2 hours. Death after 2-3 hours.

Technical Specifications

Detecting Principle	Semiconductor
Detected Gas	CO
Measurement Range	0 to 999 PPM
Resolution	1PPM
Operating Temperature	0 to 55^oC
Operating Humidity	<95%
Display Mode	Digital display with seven segment screen
Alarming Method	Automatic Alarming
Sound Level	>80 Db
Power Supply	230 Volts AC/ 12 Volts DC/ 24 Volts DC
Weight	325 gms
Current	<180 mA (In measuring condition) <100 mA (In non measuring condition)
Optional Function	Gas shut off valve, Relay output for exhaust fan, Input to Central Security System

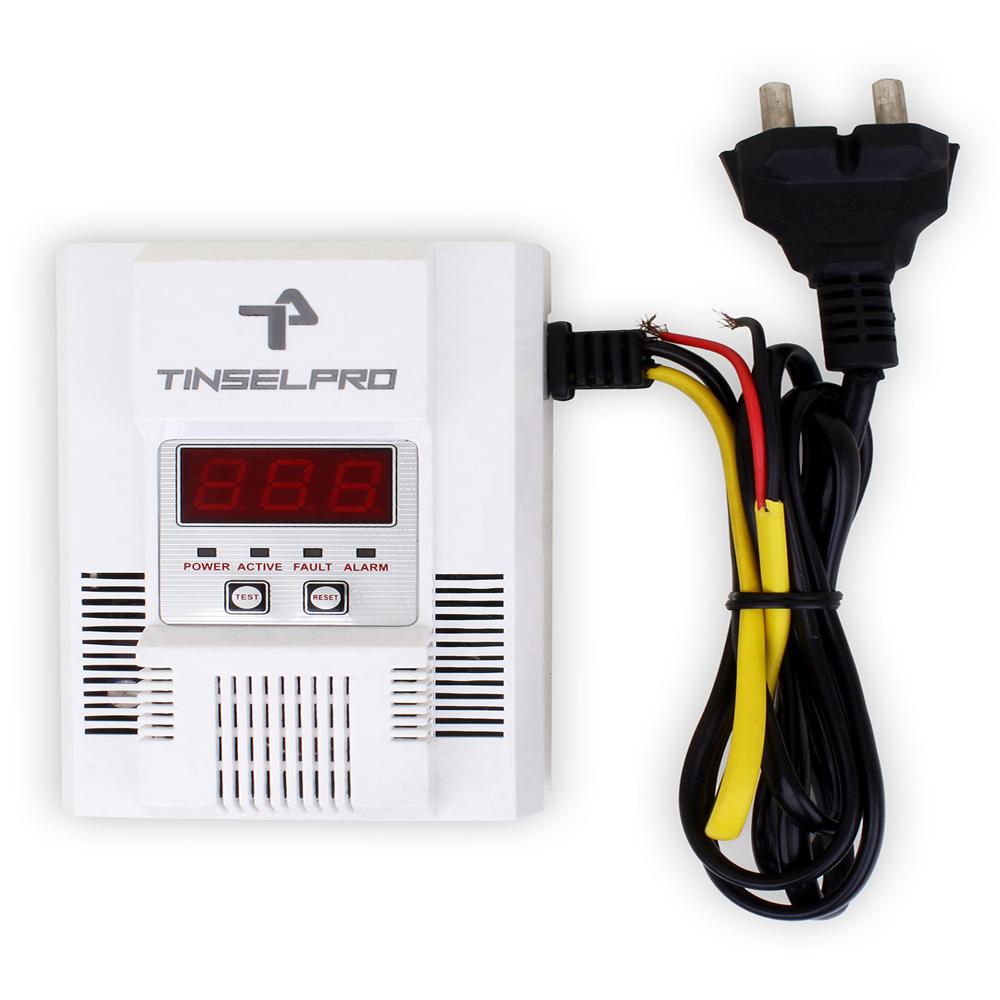

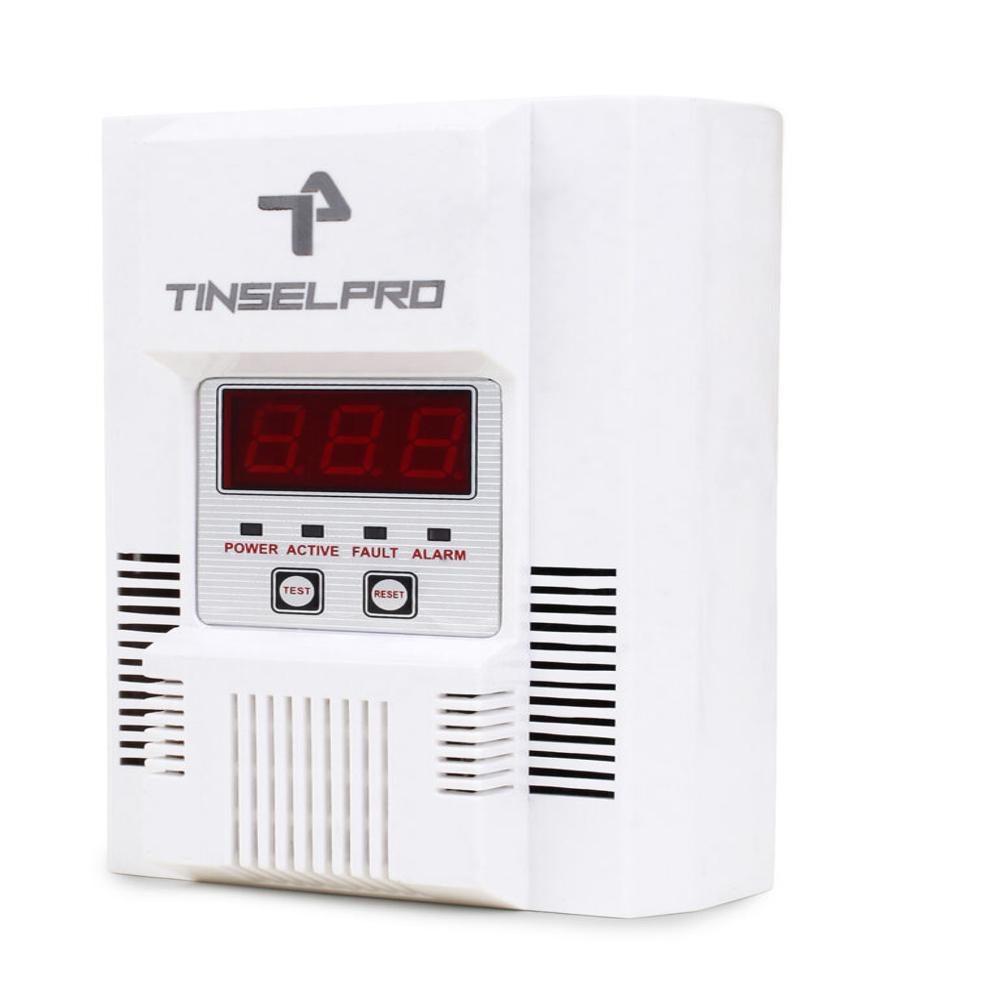

LED Indicator Indication:

GREEN LED : POWER light (shows Detector power ON)
BLUE LED : ACTIVE light (shows Detector working properly)
YELLOW LED: FAULT light (shows sensor is faulty)
RED LED : ALARM light (GAS concentration is above the preset level)
BUTTON OPERATION:
TEST BUTTON: Press for test ALARM FUNCTION.
RESET BUTTON: Press for stop the WARM UP time.

Precision Detection and Fast Response

Engineered for reliability, this wall hung CO gas leak detector ensures immediate response within 10 seconds. Its accurate gas sensor examines air quality across a broad spectrum from 0 to 999 PPM, alerting users at the earliest sign of danger. The state-of-the-art seven-segment display offers real-time readings for straightforward and swift decision-making.

Versatile Power Compatibility and Durability

Suitable for various installation settings, this detector supports power from 24V DC, 12V DC, or 220V AC, facilitating flexible operation in industrial and commercial contexts. Its resilience under high humidity (up to 95%) and a temperature range from 0C to 55C ensures uninterrupted performance. The robust build and lightweight design make it easy to install and maintain.

FAQ's of Wall Hung CO Gas Leak Detector:

Q: How does the Wall Hung CO Gas Leak Detector detect carbon monoxide leaks?

A: This detector utilizes a sensitive gas sensor that continuously monitors carbon monoxide levels in the air. When CO concentrations rise above safe levels (within a range of 0 to 999 PPM), the device instantly triggers an alert to warn users of a potential gas leak.

Q: What are the power supply options for this CO gas leak detector?

A: The detector is designed for maximum flexibility and can be powered using 24V DC, 12V DC, or 220V AC, making it suitable for both industrial and commercial installations.

Q: When should the CO gas leak detector be installed and where is it ideally placed?

A: Install the detector wherever there is a risk of carbon monoxide leaks, such as near gas-powered appliances or in industrial sites. It should be mounted on a wall at breathing level for optimal air sampling, generally during new construction or safety system upgrades.

Q: What is the process for using the CO Gas Leak Detector?

A: Once the device is mounted and connected to a compatible power source, it will automatically begin sampling air. The digital seven-segment display presents real-time CO levels. In the event of a leak, the detector alerts users, enabling immediate action.

Q: What is the main benefit of using this wall hung gas leak detector?

A: The main advantage is the rapid response time-just 10 seconds-paired with 100% detection accuracy, thereby providing critical early warnings to prevent poisoning and ensure occupant safety.

Q: How do I interpret the display readings on the CO gas leak detector?

A: The detector's seven-segment display shows the CO concentration in parts per million (PPM). Readings within the safe range require no action, while elevated levels indicate the need for immediate attention.
