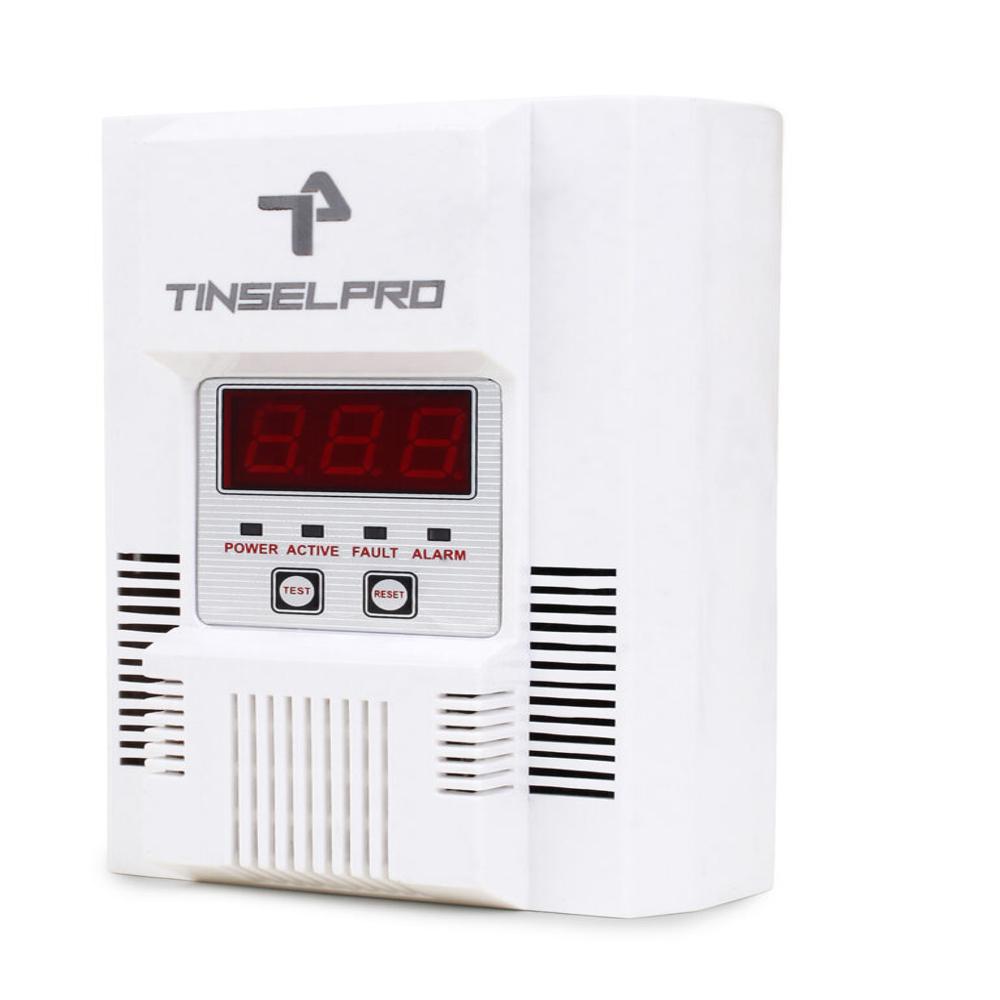

Wall Hung Methane Gas Leak Detector

Name: Wall Hung Methane Gas Leak Detector
Brand: R. J. ELECTRICALS PVT. LTD.
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Wall Hung Methane Gas Leak Detector Specification

Power Supply
24V DC/220V AC/ 12V DC

Temperature
0 To 55 Celsius (oC)

Voltage
24 Volt (v)

Sensor
GAS DETCETOR

Product Type
GAS LEAK DETECTOR

Color
WHITE

Display
SEVEN SEGMENT

Response Time
10 Seconds

Accuracy
100 %

Humidity
<95%

Weight
600 Grams (g)

Power
220 Volt (v)

Test Range
0 TO 999 PPM

Test Material
Gas

Type
Electronic

Use
GAS LEAK DETECTOR

Test Medium
PPM

Operating Voltage
24V DC/220V AC/ 12V DC Volt (V)

Net Weight
1 Kilograms (kg)

Wall Hung Methane Gas Leak Detector Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Week

Main Domestic Market
All India

About Wall Hung Methane Gas Leak Detector

Supported by a team of skilled professionals, we have been betrothed in manufacturing, exporting and supplying the best grade Methane Gas Leak Detector (Wall-Hung). This detector is manufactured using quality approved components by our adept professionals at advanced production unit. The provided detector is used for analyzing the leaked among of methane gas in domestic and commercial places. Furthermore, the offered Methane Gas Leak Detector (Wall-Hung) can be bought from us at cost effective rates.

Key Points:

Compact size
Easy to hang
Fast processing
Highly reliable

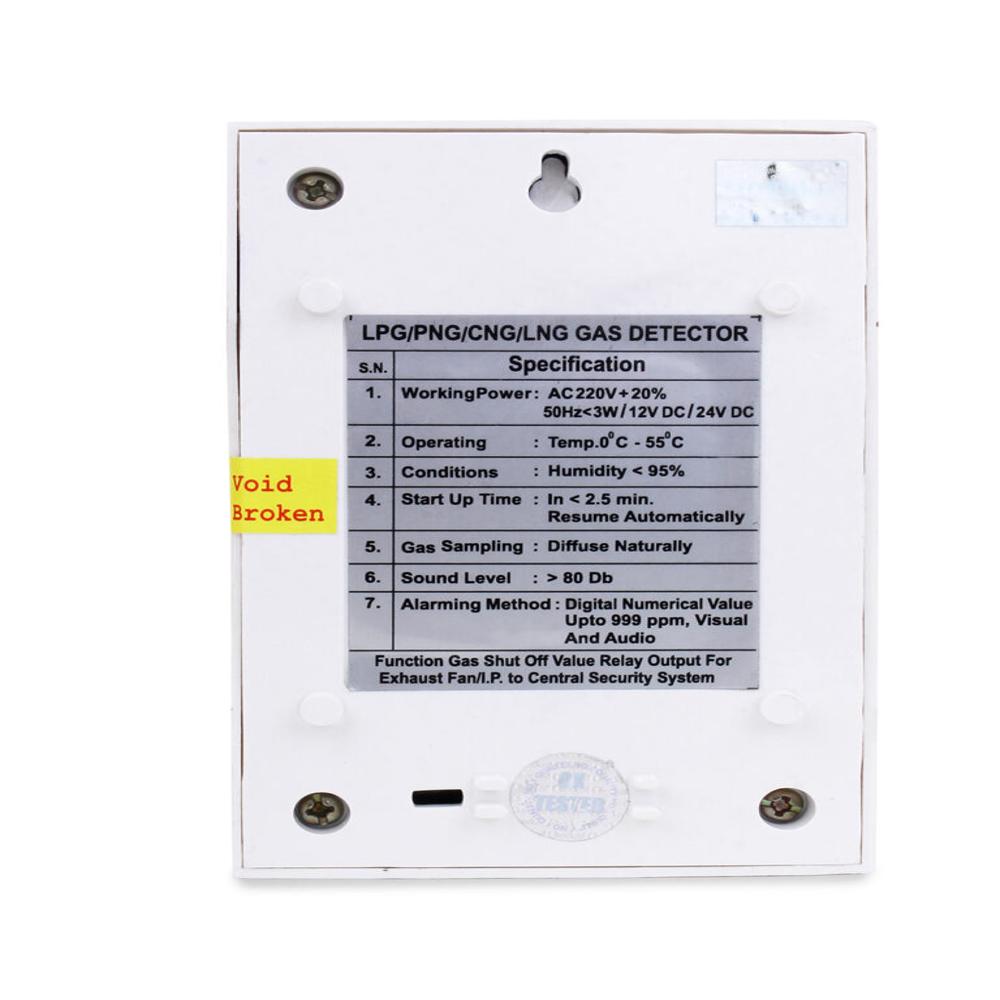

TECHNICAL SPECIFICATION:

Detecting Principle	Semiconductor
Detected Gas	CH4
Measurement Range	0 to 999 PPM
Resolution	0.1%
Operating Temperature	0 to 55^oC
Operating Humidity	<95%
Display Mode	Digital display with seven segment screen
Alarming Method	Automatic Alarming
Sound Level	>80 Db
Power Supply	230 Volts AC/12 Volts DC/ 24 Volts DC
Weight	350 gms
Current	<180 mA (In measuring condition) <100 mA (In non measuring condition)
Optional Function	Gas shut off valve, Relay output for exhaust fan, Input to Central Security System

Customization (As Per Clients requirement)

Available in IP-Console & Flameproof Console.
Available with Battery Back-Up .
4-20 ma Output
0-10 Volts Output

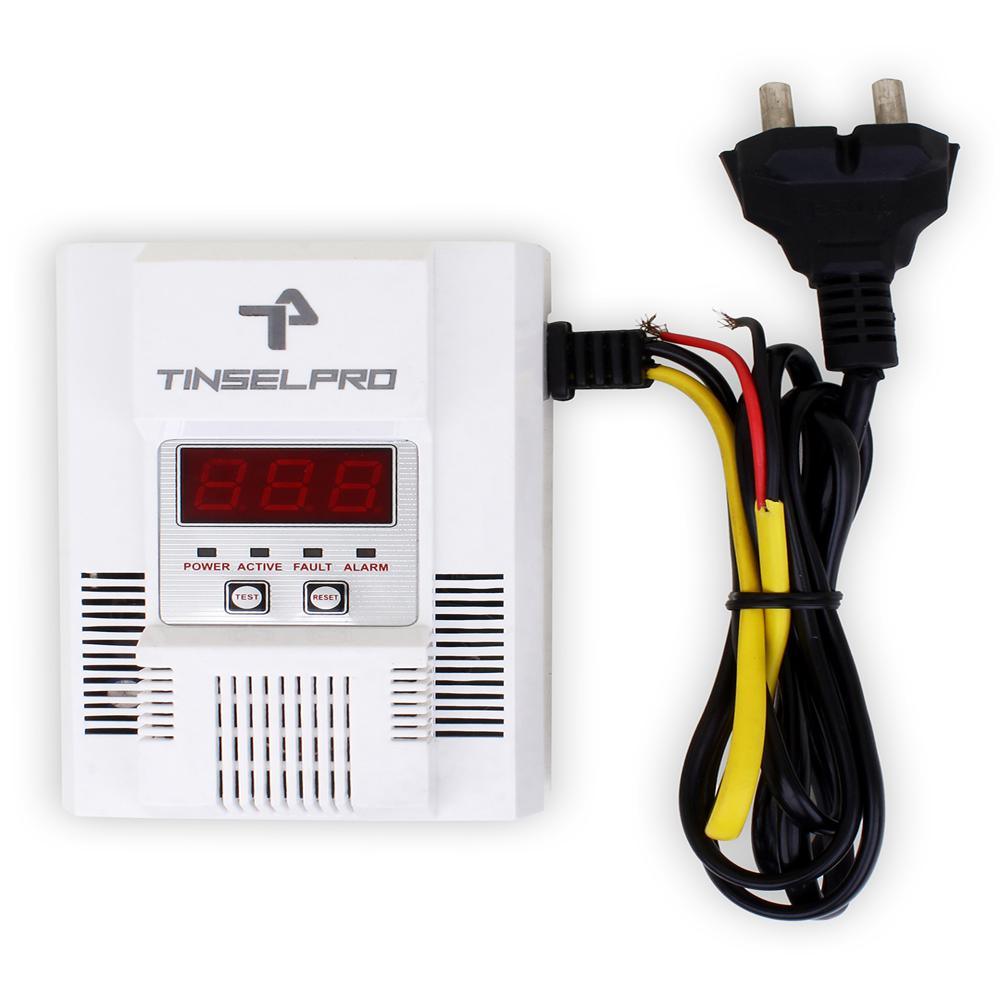

LED Indicator Indication:

GREEN LED : POWER light (shows Detector power ON)
BLUE LED: ACTIVE light (shows Detector working properly)
YELLOW LED : FAULT light (shows sensor is faulty)
RED LED : ALARM light (GAS concentration is above the preset level)

BUTTON OPERATION:

TEST BUTTON : Press for test ALARM FUNCTION.

RESET BUTTON : Press for stop the WARM UP time.

Advanced Gas Leak Detection Technology

Employing an electronic gas sensor, this wall-mounted detector provides accurate methane detection, covering concentrations from 0 to 999 PPM. The seven-segment display ensures clear readings while the detector's swift 10-second response enhances overall safety in residential, commercial, and industrial environments.

Flexible Power Supply & Installation

The detector is compatible with 24V DC, 220V AC, and 12V DC power supplies, allowing easy integration into various electrical systems. Its compact design, lightweight build, and white finish make wall installation straightforward, without disrupting aesthetics or spatial arrangements.

FAQ's of Wall Hung Methane Gas Leak Detector:

Q: How does the Wall Hung Methane Gas Leak Detector function?

A: This detector uses a sensitive gas sensor to continuously monitor the air for methane, displaying concentration levels on a seven-segment display and triggering an alert within 10 seconds if levels exceed safety thresholds.

Q: What power options are available for operating the detector?

A: The detector is versatile, running on 24V DC, 220V AC, or 12V DC. This flexibility makes it suitable for use in a range of settings without the need for special power arrangements.

Q: When should I consider installing this gas leak detector?

A: Install the detector in any environment where methane usage or risk of leakage exists, including homes, industrial plants, and commercial kitchens, for constant and reliable gas monitoring.

Q: Where is the best location to mount the gas leak detector?

A: Mount the device on a wall near ceilings, as methane is lighter than air and ascends. Positioning it above potential leak sources ensures earlier detection.

Q: What is the detection process for this device?

A: Upon sensing methane, the detector quickly analyzes concentration levels, displays results digitally, and emits an alert within ten seconds if dangerous levels are detected.

Q: How is the device beneficial for safety?

A: By providing real-time methane detection and rapid alerts, this device helps prevent accidental gas exposure, property damage, and enhances overall safety in sensitive environments.
