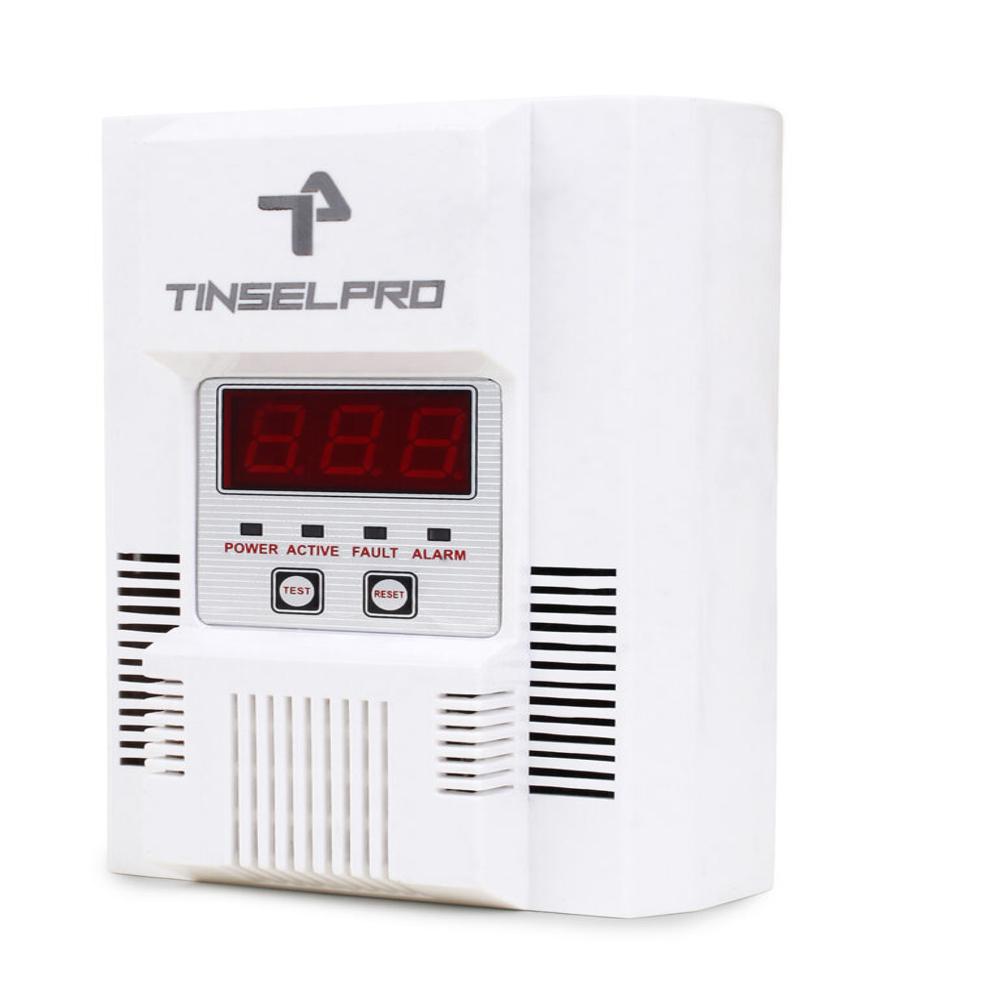

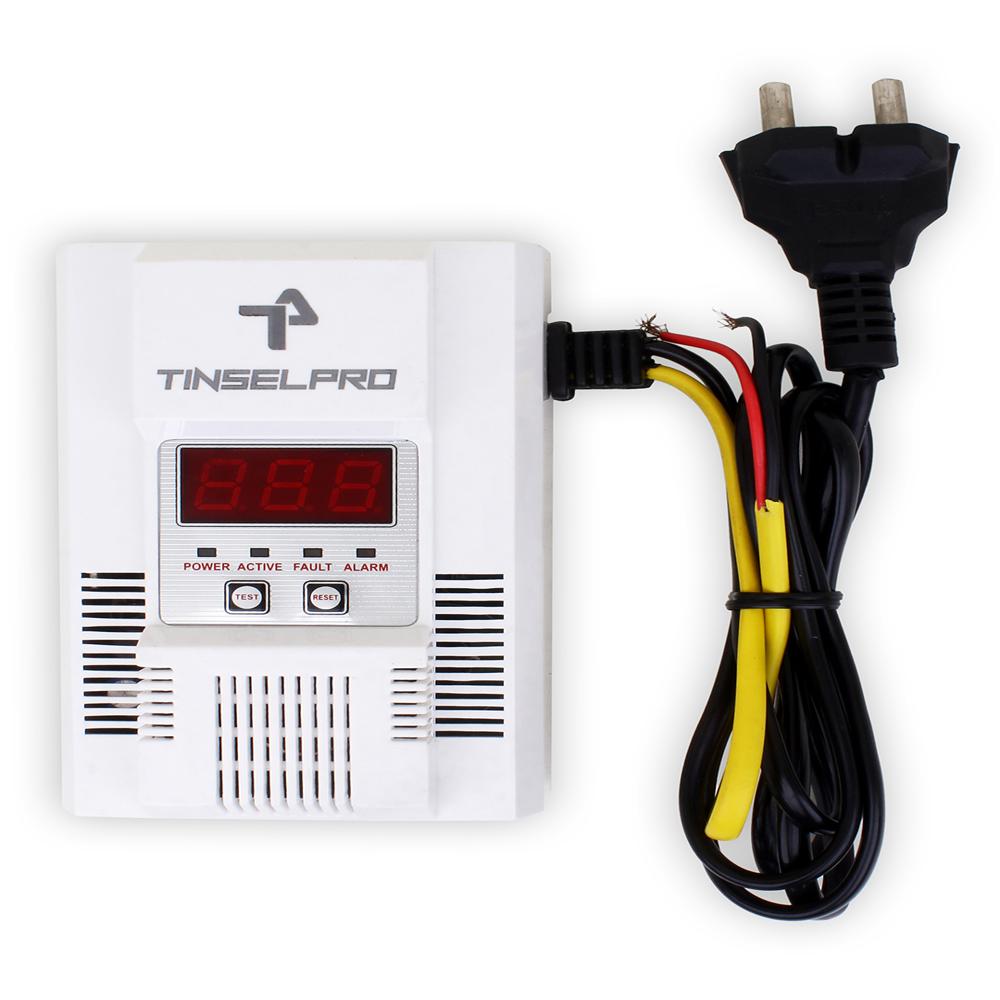

Wall Mounted Hydrogen Gas Detector

Name: Wall Mounted Hydrogen Gas Detector
Brand: R. J. ELECTRICALS PVT. LTD.
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wall Mounted Hydrogen Gas Detector Specification

Response Time
30 Seconds

Application
Restaurants and Commercial Kitchens, Hotels and Hospitality facilities, Educational Instuitutions, Commercial Buildings

Operating Temperature
0 TO 55 Celsius (oC)

Temperature
0 To 55 Celsius (oC)

Humidity
<95%

Accuracy
100 %

Weight
325 Grams (g)

Product Type
GAS LEAK DETECTOR

Power Supply
24V DC/220V AC/ 12V DC

Test Range
0 TO 999 PPM

Display
7 SEGMENT DISPLAY

Sensor
MOS SEMICONDUCTOR SENSOR TECHNOLOGY

Test Material
Gas

Color
WHITE

Dimension (L*W*H)
115 X 75 X 30 Millimeter (mm)

Type
Electronic

Use
GAS LEAK DETECTOR

Test Medium
GAS

Operating Voltage
24V DC/220V AC/ 12V DC Volt (V)

Net Weight
325 Grams (g)

Wall Mounted Hydrogen Gas Detector Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Wall Mounted Hydrogen Gas Detector

Hydrogen is a flammable, colorless, odorless, compressed gas packaged in cylinders at high pressure. It poses an immediate fire and explosive hazard when concentrations exceed 4%. It is much lighter than air and burns with an invisible flame. High concentrations that will cause suffocation are within the flammable range and must not be entered.

TECHNICAL SPECIFICATION:

Detecting Principle	Semiconductor
Detected Gas	H2
Measurement Range	0 to 999 PPM
Resolution	0.1%
Operating Temperature	0 to 55^oC
Operating Humidity	<95%
Display Mode	Digital display with seven segment screen
Alarming Method	Automatic Alarming
Sound Level	>80 Db
Power Supply	230 Volts AC/12 Volts DC/ 24 Volts DC
Weight	350 gms
Current	<150 mA (In measuring condition) <75 mA (In non measuring condition)
Optional Function	Gas shut off valve, Relay output for exhaust fan, Input to Central Security System

Customization (As Per Clients Requirement):

Available in IP-Console & Flameproof Console.

Available with Battery Back-Up .

LED Indicator Indication:

GREEN LED : POWER light (shows Detector power ON)

BLUE LED : ACTIVE light (shows Detector working properly)

YELLOW LED: FAULT light (shows sensor is faulty)

RED LED : ALARM light (GAS concentration is above the preset level)

BUTTON OPERATION:

TEST BUTTON: Press for test ALARM FUNCTION.

RESET BUTTON: Press for stop the WARM UP time.

Advanced Safety for Hydrogen Detection

This gas detector is engineered to provide early warning of hydrogen leaks, enhancing safety standards in workplaces. Its electronic sensor system delivers fast and accurate readings, helping prevent potential hazards. With wall-mounted installation, it offers continuous surveillance without occupying workspace, making it a prudent choice for factories, research labs, and storage areas.

Flexible Installation and Operation

Supporting multiple power supply options-24V DC, 220V AC, or 12V DC-this detector adapts seamlessly to diverse environments. Its compact design and moderate weight allow for hassle-free installation, while its wide operational temperature and humidity range maximize reliability in varied conditions. The test medium is measured in parts per million (PPM), ensuring precise monitoring.

FAQ's of Wall Mounted Hydrogen Gas Detector:

Q: How does the Wall Mounted Hydrogen Gas Detector work?

A: This device operates by continuously sampling ambient air, detecting hydrogen gas concentrations from 0 to 999 PPM using an electronic sensor. When it senses gas levels above safe limits, it triggers alerts to warn occupants promptly.

Q: What environments are suitable for installing this gas detector?

A: The detector is suitable for industrial plants, laboratories, warehouses, and commercial spaces where hydrogen gas may be present. It performs optimally within 0 to 55C temperature and humidity below 95%.

Q: When should the hydrogen gas detector be used?

A: Install and use this detector wherever hydrogen gas is handled, stored, or produced to ensure safety. Regular monitoring is necessary, especially during operations involving pressurized hydrogen cylinders or gas pipelines.

Q: Where should I mount the device for optimal detection?

A: Mount the detector on a wall at a height where hydrogen gas is likely to accumulate, typically near the ceiling due to hydrogen's light nature. Avoid locations with excessive moisture or direct airflow, as they may affect sensor accuracy.

Q: What is the process for installing the detector?

A: Begin by ensuring access to a compatible power supply-24V DC, 220V AC, or 12V DC. Secure the unit to the chosen wall location, connect the wiring as per the supplied manual, and conduct a functional test to confirm operational readiness.

Q: How do I benefit from using this gas leak detector?

A: Utilizing this detector provides enhanced safety by offering early warning of hydrogen leaks, reducing risk of fire, explosion, and exposure. It supports compliance with safety regulations and helps protect people and property.
